![[Animation: GPR data collected while water is draining out of a horizontal fracture.]](movie.gif)

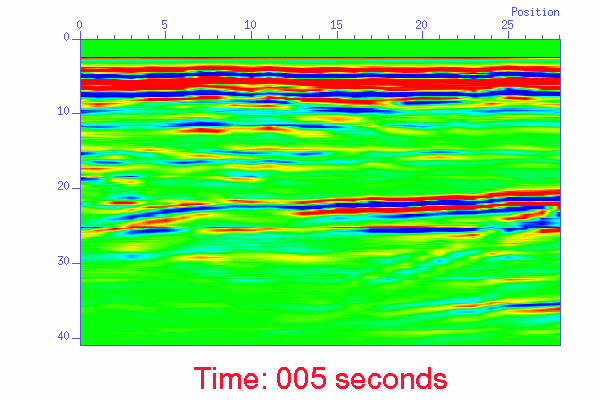

Animation of GPR data collected while water is draining out of a horizontal fracture through the center of the granite block of rock (located at about 25 nanoseconds (ns). The granite block measures about 2 m in length, 1 m in width, and 1.5 m in height. The fracture is located roughly 80 cm from the top of the block. The GPR survey was conducted with the Geophysical Survey Systems, Inc., SIR-10A+ and 500 MHz. antennas.* Twenty-nine traces were collected; one every 5 cm along the top surface of the rock. The fracture contained about 14 Liters (L) of water when it was saturated.
