Start a new MODFLOW model and select "Meters" and "Days" as the length and time units respectively. If desired, the projection for this synthetic example can be set to "N/A" or "Not applicable."
Screen capture of the Initial Grid dialog box illustrating the specification of the length and time units.
After clicking "Next", set the number of layers to 1 and set the top of the model to 1 and the bottom to 0. Click the No Grid button to close the dialog box.

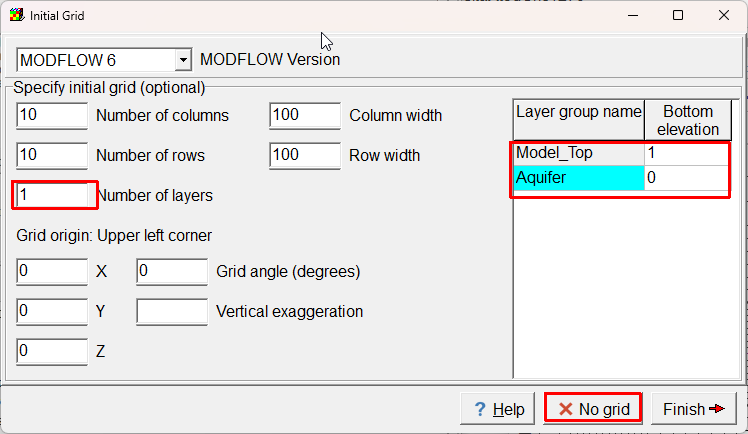

Screen capture of the Initial Grid dialog box illustrating specifying the number of layers and the elevation of the top and bottom of the model.
