Hierarchical Design:

Windows NT 4.0 and prior versions use the concept of the Domain Model for authentication and resource sharing. In Windows 2000, the Domain Model still exists, but has been greatly enhanced to allow more design flexibility and easier sharing of resources across domains. Windows 2000 introduces the concepts of Trees (a hierarchical arrangement of domains that share the same DNS suffix) and Forests (a collection of Trees) that interact through automatic two-way trusts, which drastically cuts down the amount of administrative effort required to allow sharing of resources across domains. This becomes extremely beneficial if other organizations want to “join” the Forest – all Trees in the Forest share a common root, so resources and data can easily be shared throughout the entire Forest.

However, there are still potential problems with a multiple domain model. One example is if a user needs to move from one domain to another – this cannot be easily done without the coordination of administrators in both domains, and specialized tools are often required. For reasons such as this, it was decided to create a hybrid of the above designs called a Placeholder Model:

In this design, a root domain called adtest.doi.gov (NetBIOS name adtestdoi) was created. No actual accounts are placed in this domain; its only purpose is to act as the root of the forest so other domains may be linked to it. A second domain called adtest.usgs.gov (NetBIOS name adtestusgs) was then created and placed in the same forest as adtest.doi.gov. Inside this domain is where the bulk of our testing for the Lighthouse project occurred.

Physical Design:

Six test locations were chosen based on the availability of team members to help with the testing. These locations are:

Denver, Colorado
Menlo Park, California
Onalaska, Wisconsin
Reston, Virginia
Rolla, Missouri
Sioux Falls, South Dakota

These locations provided a very good test environment. The servers behind Onalaska and Sioux Falls sit behind firewalls, which allowed the Lighthouse team to evaluate the minimal ports necessary for AD replication to occur. Also, sporadic network and routing problems that occurred in Reston and Menlo Park during our testing also helped the team in determining what effects prolonged WAN outages can have on an Active Directory implementation.

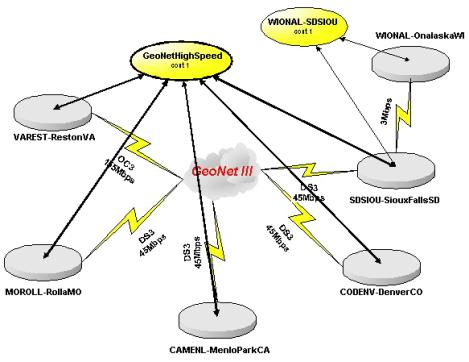

Active Directory replication is managed by the creation of objects called Sites, which are areas of high-speed connectivity connected by slower WAN links. For our testing, a Site was created for each of the above test locations.

It is important to note that with the current USGS GEONET3, our WAN links are fast enough that all of the six locations could be considered a single Active Directory Site, but the six Sites were created for future flexibility in assigning “campus-wide” Group Policies (for Sites like Denver and Reston, where there are multiple disciplines in each campus).

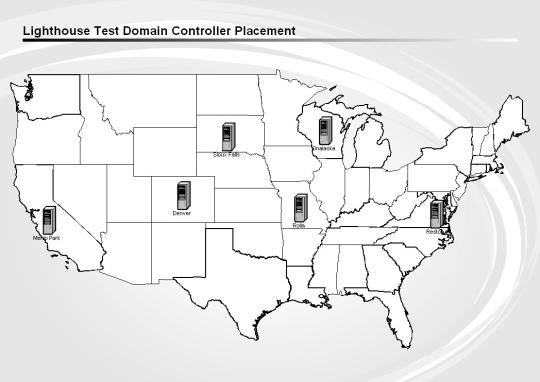

At least one Domain Controller (DC) was placed into each Site. DC placements and special roles performed by these controllers are as follows:

*Location*	*Domain*	*Server Name*	*Global Catalog*	*FSMO Roles*
*Reston*	adtest.doi.gov	VAREST01	Yes	Schema Master Domain Naming Master
*Reston*	adtest.doi.gov	VAREST02	No	PDC Emulator RID Master Infrastructure Master
*Reston*	adtest.usgs.gov	VAREST04	Yes	None
*Denver*	adtest.usgs.gov	CODENV01	No	PDC Emulator RID Master Infrastructure Master
*Denver*	adtest.usgs.gov	CODENV02	Yes	None
*Rolla*	adtest.usgs.gov	MOROLL01	Yes	None
*Menlo Park*	adtest.usgs.gov	CAMENL01	Yes	None
*Sioux Falls*	adtest.usgs.gov	SDSIOU01	Yes	None
*Onalaska*	adtest.usgs.gov	WIONAL01	Yes	None

As with Windows NT 4, in Windows 2000 each DC holds a replica of all information in the domain it services. A new feature in Windows 2000 is the concept of multi-master replication: each DC is capable of accepting changes and replicating those updates to the other DC’s in the domain. This drastically reduces the number of domain controllers required to service the domain, and lessens the problems that could arise from the failure of a single DC – a new DC can be installed in place of the failed DC, and it will receive a full copy of the Active Directory information from the other Domain Controllers. Since all DC’s are able to replicate to each other, it is also advisable to keep the number of DC’s small to reduce the amount of WAN replication traffic. In addition, it is recommended that every Site have a Domain Controller that acts as a Global Catalog. Global Catalog servers maintain a subset of attributes for all objects in the forest as well as a full copy of the information of their own domain. This allows directory searches that would normally require WAN access (like searching for users in other domains) to be performed locally at the Site, increasing response times and cutting down on WAN traffic.

Logical Design:

New to Windows 2000 is the concept of Organizational Units (OU’s). OU’s can be created to organize the users, computers, printers, etc., that are in the Active Directory. Group Policies can be placed on OU’s for automatic configuration of the objects inside the OU. OU’s can also be used to allow a very granular delegation of administrative duties to users inside the OU. For example, it is now possible in Windows 2000 to allow Helpdesk personnel to only have permission to change user’s passwords, without being able to change their group memberships or any other information. Likewise, it is also possible to allow a user to have local administrative access on workstations in the user’s OU, but not in someone else’s OU.

A guiding principle of OU design is “wider is better,” meaning that having several nested layers of OU’s is discouraged. The reason for this is that whenever 1) a Windows 2000 machine is started, or 2) a user logs in to the domain from a Windows 2000 machine, a set of checks is made to see if there are any Group Policies that apply to the machine or user. Local policies on the machine are checked first, then Site policies, Domain policies, and finally OU policies are checked for settings that need to be applied. If the user or machine exists several layers down inside an OU structure, user login times and machine startup times can be impacted.

It was decided to have a top-level OU design based on a combination of the Site the user is in as well as their Discipline (example, DenverCO-W for Water Resources personnel in Denver). A second OU called the “Full Admins” OU (example, DenverCO-W Full Admins) is created, which starts an administrative hierarchy of OU’s and groups that allow for a very granular delegation of authority inside the Site-Discipline OU, as shown below.

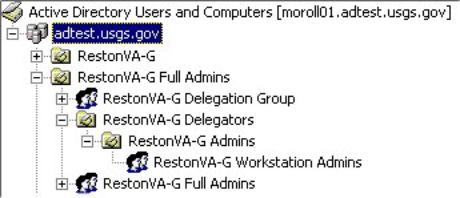

When this structure is created, someone designated as a Full Admin for their OU has full administrative authority for all objects in their OU – they can create and delete users, add workstations to the domain, put up new member servers, add subordinate OU’s, etc. The only administrative tasks that cannot be performed by Local Administrators are those that can have a domain or enterprise-wide impact, such as creating trusts between domains or changing the minimum length of passwords. These tasks would still need to be performed by a small, centralized team of Domain Administrators.

Again, it is important to note that every DC will maintain a full copy of all OU structures and changes that are made to them. Because of this, Local Administrators will need to understand that DC’s are to be treated as Bureau resources. In fact, Local Administrators will not need to physically log in to any of the DC’s to perform their administrative tasks – Local Administrators can perform changes to their OU from any Windows 2000 computer in the forest through the Active Directory Users and Computers console.

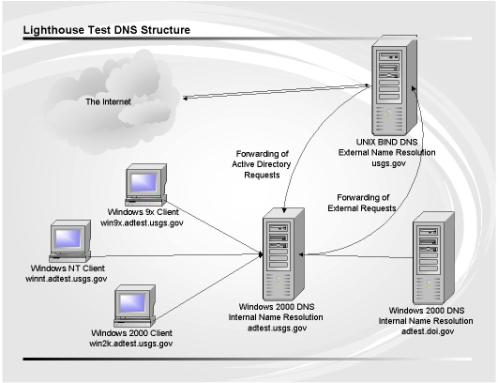

1. DNS Configuration

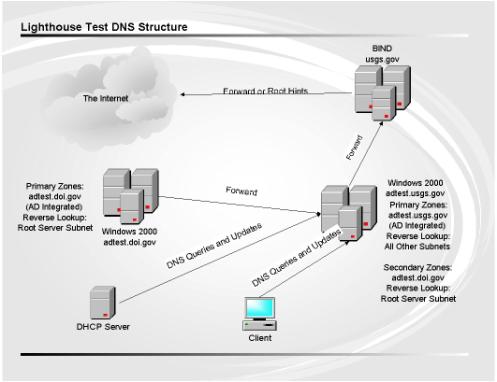

Active Directory is heavily dependent on a proper DNS configuration in order to perform correctly. AD requires the use of DNS servers that support the use of Resource Records to store additional information, such as Kerberos and Site information. It was also very important that the DNS structure created to support the Active Directory be able to interoperate with the existing BIND DNS servers throughout the Survey.

It was decided that every Domain Controller would also function as a DNS server. This was done to allow Sites to still have DNS and AD functionality if their WAN link to other Sites was ever severed – the DC would be able to fall back to its own copy of the DNS information and still service clients.

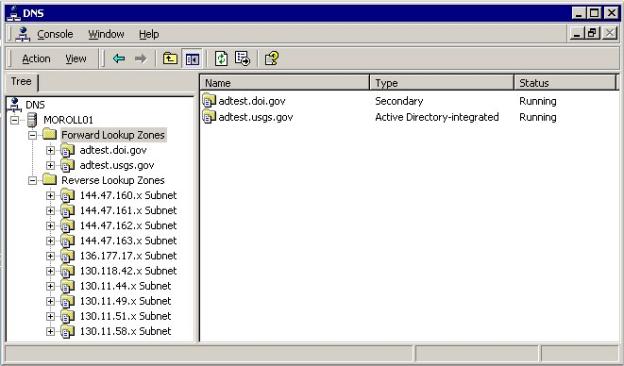

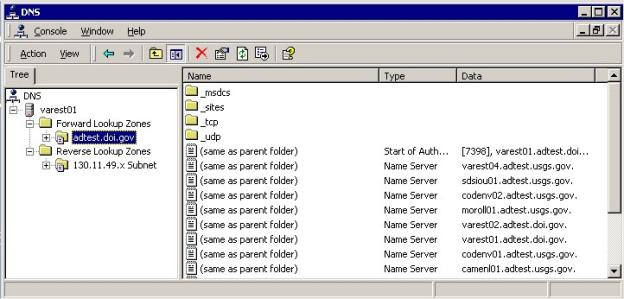

The adtest.doi.gov servers were configured to host their own DNS domain, as well as a Reverse Lookup Zone for those servers. These zones are configured as Active Directory Integrated Zones, meaning that there is no separate zone file containing the DNS information – the information is contained directly inside the Active Directory, so DNS updates occur as normal AD updates. The servers are configured to allow normal Zone Transfers, but only to the other Domain Controllers (which are DNS servers) in the forest. Scavenging of stale resource records is also configured on these zones. The adtest.doi.gov servers were also configured to forward requests that they are not authoritative for the adtest.usgs.gov DNS servers.

The adtest.usgs.gov servers are configured similarly to the adtest.doi.gov servers. They host their own Active Directory Integrated Forward and Reverse Lookup Zones for the adtest.usgs.gov domain, allow Zone Transfers to the DNS servers in the Forest, and perform scavenging of stale resource records. The adtest.usgs.gov DNS servers also hold Secondary Zones of the adtest.doi.gov DNS information. These DNS servers are configured to forward requests that they are not authoritative for to the current USGS BIND DNS servers. The USGS BIND servers are also configured to host the adtest.usgs.gov zone, and forward all requests for that zone to the Windows 2000 adtest.usgs.gov servers for resolution. In this configuration, it is not required to have clients pointing to the Windows 2000 DNS servers for name resolution, but it is recommended.

Both the adtest.doi.gov and adtest.usgs.gov servers also act as caching DNS servers for requests that they have forwarded to the BIND servers. The following pictures summarize the above information and show how the overall DNS picture works.

2. WINS Configuration

While Windows 2000 itself does not require the use of WINS for name resolution, it is still required to support the down-level Windows NT and Windows 9x clients in the survey, as well as for interoperability with UNIX machines running Samba. Rather than having several individual Site WINS servers performing Push/Pull Replication with each other, it was decided to have a central WINS structure for the entire Forest. There are only 2 WINS servers in our test network (varest01.adtest.doi.gov and camenl01.adtest.usgs.gov), and they are configured to perform Push/Pull Replication with each other. This has the effect of creating a consolidated picture of all machines in the adtestusgs domain. The central WINS design also requires that there can be no duplication of hostnames inside a domain. In order to be able to differentiate what machines in this consolidated view belong to what Site, the Site name can be placed in the Description field of each workstation, in addition to any information required by the Site. This information can be viewed from the Details view of Network Neighborhood / My Network Places:

3. Domain Controller Configuration

The test environment consisted of 9 Compaq Proliant Servers, configured with a single 733MHz Pentium III Processor, 256MB RAM, and 2 18GB SCSI hard drives. In order to cut costs on the test servers, these systems were purchased without hardware RAID capabilities. Instead, the disks on these systems were configured as Windows 2000 Dynamic Disks and software mirroring was performed on them for redundancy:

Each Domain Controller is configured to use another DC as its Primary DNS server, and to use itself as a Secondary DNS server. This was done to decrease DC startup time, as the DC’s will dynamically register themselves in DNS before they have completed loading their local copies of the Directory. By using a different machine for its Primary DNS, this registration can occur without the local machine having to completely finish loading, resulting in faster startups. Each machine is also configured to run Terminal Services in Remote Administrator mode, meaning that each DC can only support 2 concurrent Terminal users at a time, and the users must have Domain Administrator rights to connect. Extra services, such as IIS, are not installed on the servers.

4. Naming Conventions

In order to achieve a consistent way of naming the many various objects inside the Active Directory, some standardization of naming conventions were necessary. For easy searching of objects, it was decided that the names of most objects would be based off of the Site the object exists in.

a) Sites - Full city name (without spaces) plus state abbreviation (for example, SiouxFallsSD)

b) Domain Controllers - Hostname for Domain Controllers are based off of the Active Directory Site they are placed in. Hostnames will consist of two letters for the State and the first four letters of the City, plus a two-digit number. The full name includes the name of the domain the DC services (for example, varest04.adtest.usgs.gov)

c) Member Servers - In order to minimize the affect of Domain Migrations on end users, existing member servers will be able to keep their current name as long as that name is not already in use. Local administrators should check with the central AD team to see if a desired hostname is available. Local administrators should also include the top-level OU name the server is a member of, in the Description field of the member server. Also, member servers should not follow the convention of Domain Controllers, so that DC’s can be easily identified.

d) Organizational Units – Top-level OU’s will be named after the site they fall in, plus discipline letter (MenloParkCA-M, BaltimoreMD-W). The “Full Admins” OU structure will be consistent for all Sites; however, the Full Admins for an OU can create whatever OU hierarchy they would like inside their “Site+Discipline” OU.

e) Workstations – In order to minimize the affect of Domain Migrations on end users, existing workstations will be able to keep their current name as long as that name is not already in use. Local administrator should check with central AD team to see if desired hostnames are available. Local administrators should also include the top-level OU name the workstation is a member of in the Description field of the workstation.

f) Published Shared Folders – 3 to 5 meaningful keywords for performing searches

g) Printers – For published printers, use Site prefix, hyphen, discipline, hyphen, room number (ex. OnalaskaWI-B-130). For printers that will not be published in the Active Directory, use whatever printing convention is currently used at the Site.

h) Groups - Site prefix, hyphen, discipline, plus group descriptor (ex. DenverCO-W Oracle Developers)

i) Login Scripts – Site prefix, hyphen, discipline, hyphen, and descriptor/number (ex. RollaMO-M-1.bat)

j) Users – use Domino username for username, with User Principal Name set to username@usgs.gov .

k) Domains

i. Root – adtest.doi.gov, NetBIOS name adtestdoi

ii. User – adtest.usgs.gov, NetBIOS name adtestusgs

5. Policies for Administration and Functionality

New to Windows 2000 is the concept of Group Policies, which are configurable templates that can be used to perform many different tasks on Windows 2000 clients, such as automatic software installation, configuration of desktop settings, and setting of security policies. Group Policies can be applied on Organizational Units, Sites, or the Domain itself. However, Group Policies do not flow between the different Domains in a Tree or Forest.

Several security-related Group Policies were set at the Domain level and on the Domain Controllers OU. These set things such as auditing policies, event log sizes and retention lengths, password policies, and the use of IPSec encryption among Domain Controllers. For more information on these policies, please refer to the Security Team Report.

For every top-level OU that is created, ten generic Group Policies are created. These policies are not initially linked to any OU, but are available for a Local Full Admin to modify as desired. Only Domain Administrators can actually create new Group Policies, so if any Local Full Admins use up their initial ten they can contact the central Domain Administrators to have more created for them.

Identified Issues/Problems:

· When camenl01 was promoted to a Domain Controller, it gave several errors in the event logs and was unable to replicate any information to other domain controllers. Further investigation showed that when camenl01 was brought online, its network configuration contained a different subnet mask than the subnet information that was used to create the MenloParkCA Site. Camenl01 then found itself unable to match the subnet information for any Site in the Active Directory, and was thus unable to receive any updates. Normally, camenl01 would have appeared in the Default-First-Site-Name Site in this case, but that Site had been renamed to create the initial RestonVA Site. The subnet information for the MenloParkCA site was corrected, and a new Default-First-Site-Name Site was created to avoid the problem in the future.

· Occasionally when rebooting a Windows 2000 Server remotely through Terminal Services, the machine doesn’t Restart but performs a normal Shutdown instead. A Hotfix was received from Microsoft, and will be incorporated into Service Pack 2.

· During our MMS testing, a replication error occurred which caused varest04 to no longer be able to process updates from other DC’s, even though it was able to propagate changes to the other DC’s. Varest04 had to be de-promoted back to a member server and re-promoted to a Domain Controller to fix the issue. A Hotfix was obtained from Microsoft to keep the problem from occurring again, and will be incorporated into Service Pack 2.

· One of the top-level Domain policies displays a login security warning to Windows 2000 clients. It was determined that whenever a comma occurs in the warning text, any spaces or null characters immediately following the space are “deleted” and not shown. Microsoft has confirmed that this has been fixed in Windows XP, but as of this writing we have no workarounds or hotfixes to correct the issue for Windows 2000.

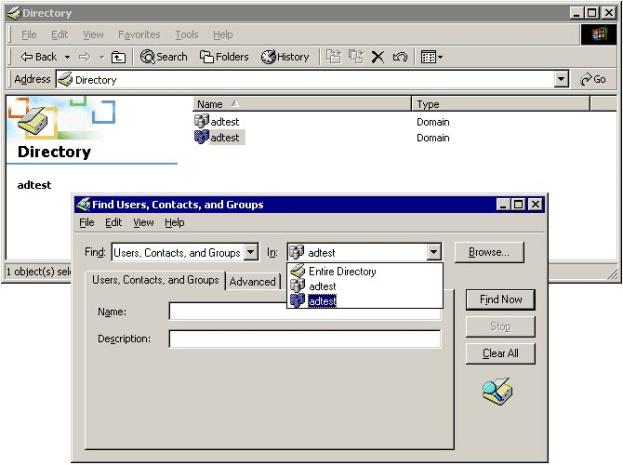

· Because the DNS names of both our Root and USGS domains start with “adtest”, there is likely to be confusion when a user goes to perform a search of the Active Directory and sees the following screen:

Therefore, in a production Directory, the names of the Domains should be changed to make Directory searches easier, at the possible cost of redundancy in the name (for example, adusgs.usgs.gov)

Recommendations:

Use the current test structure and layout as the basis for a full production implementation of Active Directory for the USGS.

Desktop/Server Systems

Members: Jay Schwegmann (Chair), Sam Martinez, Brian Rood

Team Objectives: Establish hardware and software standards for Windows 2000 Professional and Server.

Scope of Test: Configure and test Windows 2000 Server/Professional. (Note: this test makes no differentiation between Windows 2000 Server and Advanced Server.)

Description of the Tests Performed:

Windows 2000 Professional:

Loaded Windows 2000 SP1 and installed various hot fixes per instructions in Scott Brondel’s configuration guide. Tested system stability and a variety of user accounts for access to both the local machine and the domain. Tested standard office automation software such as MS Office, various anti-virus software solutions, X-windows emulation software and ARC/GIS software.

Windows 2000 Server:

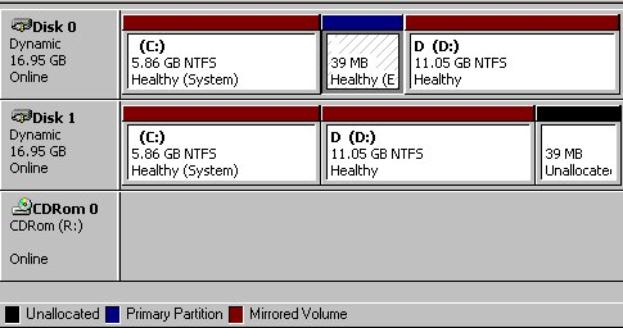

Loaded Windows 2000 Server SP1 with various hot fixes onto single drive utilizing Windows 2000 software mirroring capabilities. Primary domain controller(s) were configured in Reston and high-level Active Directory components were setup (sites, replication, upper-level OU’s, security.) Established IP/Sec connectivity between domain controllers and established a replication schedule. Established administration policies and procedures.

Workstation Upgrade/Migration:

Performed an in-place upgrade from Windows NT workstation 4.0 to Windows 2000 Professional. Also performed in-place upgrade from Windows 98 SE to Windows 2000 Professional.

Test Results:

Windows 2000 Professional:

Sample machines:

Dell Optiplex GXi

Dell Dimension

“Clone” PC

550 Mhz PIII

256MB RAM

10GB Hard drive

400 Mhz PII

128MB Ram

6GB Hard drive

Dual 350Mhz PII

256 MB RAM

2 4GB Hard drives

Configured as “Administrators” workstation

Configured as standard office workstation

Configured as ARC/GIS workstation

· OS loaded with SP1 on all test machines (see notes below)

· Hot fixes were applied successfully

· Software tested worked without incident

· Overall stability rated as good

Test Recommendations:

Windows 2000 Professional is not particularly CPU intensive when used in a traditional “office automation” role. The Dell Dimension workstation used in the testing was configured as a typical workstation. Although purchased in early 1999 with a 400Mhz PII Intel CPU and only 128MB of RAM, the system performed adequately. The GXi configured as the “Administrator’s workstation” did on occasion run close to it’s memory threshold while the “clone” dual 350Mhz system running GIS software routinely ran the software without difficulty.

As is the case with most operating systems the most significant limitation is the amount of physical RAM in the workstation. Applications such as IE, Lotus Notes and the Microsoft Office 2000 and Office XP suite, when running in parallel, consume vast amounts of physical RAM.

Recommended Configurations

Admin Workstation

700Mhz-1.5Ghz PIII/IV

256-384MB RAM

20GB drive

GIS

800Mhz – 1.5Ghz PIII/IV

256-512MB RAM

30GB drive

Office Automation

500Mhz-800Mhz PIII

256MB RAM

10GB drive

Test Results:

Windows 2000 Server:

Sample machines:

Compaq Proliant ML370

“Clone” single CPU

“Clone” dual CPU

733Mhz PIII

256MB PC133 RAM

2 UW 18GB SCSI drives

Software mirroring

700Mhz PIII

256MB PC133 RAM

1 4GB ATA IDE

1 30GB ATA IDE

2 633Mhz PIII

512MB PC133 RAM

1 LDV 9GB SCSI drive

(tested w/o RAID5 array)

· OS loaded with SP1 on all test machines

· Hot fixes were applied successfully

· Tested configurations had good stability

Test Recommendations:

Windows 2000 Server/Advanced Server requires at least a single 500Mhz CPU and 256MB RAM to function. Fast SCSI drives and RAID arrays are also a necessity if high performance is required. Generally, for a typical Windows 2000 Server in a traditional file-sharing role, the specifications above will suffice. However if the server’s role is to be a Terminal Server, Application Server or Database Server, the specifications should be scaled up accordingly, with two or even four CPUs running at 1Ghz or higher and up to 2GB RAM (4GB RAM if supported) and fast-wide SCSI drives in RAID5 configuration, and a quality array controller with enough cache.

Recommended Configurations

Domain Controller

Single or dual 700Mhz-1.5Ghz PIII/4 CPUs

512MB-1GB RAM

2 mirrored 9GB SCSI drives for OS

3-5 36GB SCSI drives RAID5

File/share server

800Mhz – 1.5Ghz PIII/IV

512MB RAM

2 mirrored 9GB SCSI drives for OS

7-12+ 36GB SCSI drives RAID5

Terminal Server

Database Server

Application Server

Dual or quad 1Ghz – 1.5Ghz P4 CPUs

1-4GB RAM

2 mirrored 9GB SCSI drives for OS

7-12+ 36GB SCSI drives RAID5

The tested configuration (Compaq Proliant ML370) was adequate for the relatively light load the server was under. Under higher load, with more users and an assumption that this load will increase over time, “over engineering” the servers is not considered unwise.

Test Results:

Windows 2000 Upgrade/Migration:

The in-place migration from Windows NT Workstation 4.0 to Windows 2000 Professional was successful. The upgrade is a simple process, assuming your original NT installation is stable, and no significant customization was done to the NT system. The test machine used, a Dell Optiplex Gx1, is fairly representative of PCs used in the USGS. The upgrade leaves the directory structure, installed applications, and to some degree, the profiles as they were under NT 4.0. On our test PC there was some confusion about the location of profiles under Windows 2000 vs. Windows NT.

The upgrade from Windows 98SE was also successful, however the overall stability of the system was questionable. Many changes to the registry occur with this scenario, and it is believed that this was the cause of the instability. We observed slow application start times, corrupted applications and an overall performance degradation as compared to a fresh installation of Windows 2000 Professional. The actual applications that were corrupted changed from one upgrade to the next, however we saw a significant failure rate with Lotus Notes client, the Arc/View and Arc/Info applications (which perform poorly under Windows 9x anyway) and the Adobe family of products.

Identified Issues/Problems:

Problem: Incorrectly configured DNS

Recommendation: Have DNS information checked prior to installation

Note: On one system, a Micron Millennia Max SE440BX Windows 2000 SP1 overwrote the ultra ATA IDE drivers rendering a 30GB IDE drive unavailable (it only showed 8GB.) This is due to the fact the Microsoft mini-ATA driver is loaded from the service pack and not the vendor specific ATA driver for the system. No other Millennia Max SE440BX system was available to replicate this problem on, however.

Team Recommendations:

The Desktop/Server team recommends the following minimum hardware configurations:

Windows 2000 Professional

500Mhz CPU

256MB RAM

10GB disk drive

Windows 2000 Server

(Basic)

700Mhz CPU

512MB RAM

Mirrored OS drives/RAID5 storage

Windows 2000 Server

(Advanced)

Dual/Quad 1Ghz CPU

1-2GB RAM

Mirrored OS drives/RAID5 storage

The team makes no recommendations on particular brands of servers (such as Compaq, HP or Dell.) These recommendations are simply the minimum hardware requirements for Windows 2000 Professional/Server.

Desktop/Server Applications and Services

Members: Sam Martinez (Chair), Ed Brown, Brian Rood

Team Objectives:

USGS Wide Applications

Administrative Applications
Application Identification and Compatibility (Backups, Virus, Management Software)
Terminal Services
IIS Testing

Offsite Intranet Access
SSL
Standard Security Configuration

Scope of Test: Test and Establish Migration Strategies for individual NT 4.0 Domain migrations using commercial Windows 2000 migration software such as NetIQ DMA and FastLane DM/Manager. Migration testing requires that applications currently used in the NT 4.0 environment will function properly in the Windows 2000 Active Directory environment. Both Terminal Services and IIS support documentation have been created on-line at http://nttac.usgs.gov/nt_tac

Description of the Tests Performed:

Although Microsoft provides a free NT Domain migration that can be downloaded, we decided not to use this product based on recommendations from both Microsoft and Compaq. The Microsoft product lacks most features found in third-party packages that allow for the transfer of both the password and security identifier information from the NT 4.0 environment. The migration products tested were NetIQ DMA and FastLane DM/Manager. The actual process required for migration went as follows:

· Configure the NT 4.0 Server TCP/IP properties to use the Windows 2000 WINS address – This is important since Windows NT 4.0 relies primarily on NetBIOS name resolution in order to determine Domain Controllers and computer names.

Create a new Organizational Unit (OU) in the Active Directory - The computer administration for the local administrator will shift from managing individual NT Domains to OUs in a single Active Directory Domain in Windows 2000. The Active Directory management team will need to create these OUs since it requires Domain Admin access and delegate control to the local computer administrator who can then further delegate control as needed.
Add trusts to the NT 4.0 Domain from the Windows 2000 server – This trust requirement is a security feature that protects an existing NT Domain from being migrated into the Active Directory without acknowledgement from the local computer administrator.
Perform migration of users, groups, security identifiers, computers, and passwords – The actual process for migration is different for each software package but both provided similar functionality during the actual migration process.

This team utilized several existing USGS resources created and maintained by the USGS Water Resources Discipline, NT Technical Advisory Committee (NT TAC) for product research and basic information. A great deal of expertise and research went into the creation of the following resources and we would like to express our gratitude for this information. A special thanks is expressed to Tony Bouret for his contributions to creation and support of the NT TAC web pages. Listed below is information maintained by the NT TAC:

USGS Wide Applications – Supported USGS bureau-level applications are thoroughly documented in the NT TAC pages. To access the information, go to the internal web site at http://nttac.usgs.gov/nt_tac then select the appropriate Application link
Administrative Applications – Most computer administration tasks can be accomplished by the Active Directory Management Team using the Windows 2000 Terminal Services built into Windows 2000 Server operating system. There may be instances where remote control, inventory, and other tasks are needed. The NT TAC supports the Intel LANDesk product that can perform these tasks but, at the current version, (LANDesk Management Suite 6.4) still requires NT 4.0 as a core server. Intel also provides a LANDesk Server Manager hardware solution that allows for complete access and system control even if the system is in the down state independent of the operating system. More information is available at http://nttac.usgs.gov/nt_tac under Applications and LANDesk.
Application Identification and Compatibility – A listing of Windows 2000 application compatibility that includes information on Antivirus, Management Software, and Backup solutions is available at http://nttac.usgs.gov/nt_tac.
Terminal Services – The configuration and administration of Windows 2000 Terminal Services is documented at http://nttac.usgs.gov/nt_tac.
Internet Information Services (IIS) 5.0 Testing – Information concerning the installation, configuration, and security settings for IIS 5.0 can be found at http://nttac.usgs.gov/nt_tac under the web servers and IIS links.

Test Results:

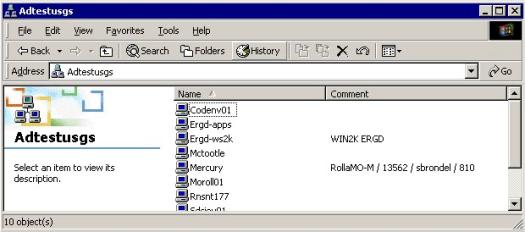

The NT 4.0 Domain migration was successful using both the NetIQ DMA software and FastLane DM/Manager.
Both migration products offer easy to follow wizards for migrating NT Domains but the FastLane product seemed to offer a more intuitive and easy to follow process for the migration process.

Identified Issues:

There will need to be money set aside in the planned budget for a useful NT 4.0 Domain migration product.
The actual NT 4.0 Migration process will require initial coordination between high-level Active Directory administrators and the local computer administrator.
Training on the migration tools and OU management will be necessary for the local administrator(s) to ensure successful migration.

Recommendation: FastLane DM/Manager is the recommended NT 4.0 migration product based on our tests but further testing of other NT 4.0 migration products may be performed as newer and better products are released. Close integration of the Active Directory Management Team with the NT Technical Advisory Committee would be advantageous to the bureau since the NT TAC group has documented much of this information at http://nttac.usgs.gov/nt_tac.

Network Infrastructure

Members: Michael Kandrac (Chair), Scott Brondel, and Larry McIrvin

Team Objectives: Determine optimum pilot configurations and testing scenarios for Windows Internet Naming Service (WINS), Dynamic Host Configuration Protocol (DHCP), and Domain Name Service (DNS).

Scope of Test: Pilot compatibility with current USGS production environment of no WINS servers, a test DHCP environment, and DNS Unix Bind 4.9.7.

Description of the Tests Performed:

1. WINS: A centralized primary WINS server was configured on VAREST01 and a secondary on CAMENL01. An excellent explanation and complete description of how WINS was configured is contained in the Active Directory Design / Central Administration Team report under ‘Description of the tests performed’, # 3, WINS Configuration.

Test: If a WINS address (which will be required for Win9x/WinNT clients of the Active Directory) is automatically provided to all of the current clients of the UNIX-based DHCP in Reston, will there be any ill effects on the clients which do not use WINS (thus UNIX and Macintosh clients)? Proposed testing: The UNIX DHCP server will be configured with a WINS scope option of 130.11.49.206 as primary and 130.118.42.50 as secondary for one day (Option NetBIOS-name-servers 130.11.49.206, 130.118.42.50). If successful: there will be no reports of problems with existing clients, regardless of platform, that can be traced to the WINS option as the cause. If unsuccessful: the WINS options will be removed, and the WINS addresses will have to be entered manually for the Active Directory clients in Reston.

2. DHCP: At the USGS National Center in Reston, a Windows 2000 DHCP was configured using a different address space (scope or range) than that configured for the production UNIX Bind DNS. Thus two DHCP servers were simultaneously active, both issuing IP addresses on a first found basis. This means a client requesting a DHCP IP address would receive one from the first DHCP server that responded.

The address space 130.11.35.1 to 130.11.35.254 is now being served by Windows DHCP with the following scope options:

Router: 130.11.48.1, 130.11.48.6

DNS Servers: 130.11.48.2, 130.118.4.2, 136.177.16.3

DNS Domain Name: er.usgs.gov

WINS/NBNS Servers: 130.11.49.206, 130.118.42.50

Also, the UNIX DHCP server would provide WINS server information of WINS/NBNS Servers: 130.11.49.206, 130.118.42.50

The actual test format was:

Day 1 - Turn on Windows DHCP, UNIX DHCP unchanged

Day 2 - UNIX DHCP starts providing WINS addresses

Day 3 - UNIX DHCP returns to normal, Windows DHCP starts providing

WINS addresses

Day 4 - Both DHCP servers provide WINS addresses

Day 5 - Windows DHCP shut off, UNIX DHCP reverts to pre-test status

3. DNS: (adtest.usgs.gov & adtest.doi.gov)

An excellent explanation and complete description of how DNS was configured is contained in the Active Directory Design / Central Administration Team report under ‘Description of the tests performed’, # 2, DNS Configuration.

Test A: Can a Windows 2000 client successfully access, become a member, and administer a Windows 2000 Active Directory without using a Microsoft DNS server as its primary DNS server? Proposed testing: A Windows 2000 Professional client will be installed, with the primary and secondary DNS servers pointing to the current UNIX BIND DNS servers. Attempts will be made to attach the machine to the current Lighthouse Active Directory in testing. Response time will also be compared to that of running with Microsoft DNS server IP's.

If successful: further tests (location of resources, management of those resources, etc.) will be made to assure that the same functionality is present on the client using BIND for DNS as compared to the Microsoft DNS running in the Lighthouse Project.

If unsuccessful: a second Windows 2000 Professional client will be installed using BIND DNS for the primary DNS IP and the Microsoft DNS as the secondary DNS IP. The same tests will be performed as well.

Test B: Install the Unix based DDNS (Bind v.9) allowing updates from the IP of the ADS server. Install the ADS and verify that it updates the Unix DDNS. If successful, the ADS structure will be pushed to the domain server updating the Unix DDNS. This would prove that our target Unix based DDNS environment would fully support a DDNS integrated ADS environment.

4. BANDWIDTH:

Test A: Disconnect a Domain Controller (DC), test the authentication process, and study the consequences of backlogged replication. i.e. If login information is cached, are domain resources still accessible?

Test B: Establish traffic baselines and note effects of replication on bandwidth traffic. A “sniffer” was setup on Varest04 to measure normal replication traffic for 3 hours. Later it was setup again to measure a forced, higher than normal replication traffic by deleting 12,000 AD names (and then, of course, adding them back in).

Test Results:

WINS: Test was judged successful. The test ran for five days without incident, there were no problem calls to either the USGS Help Desk or Jim Fisher, USGS DNS administrator.

DHCP: Test was judged successful. Test ran for five days without reported incident, no problem calls to either the USGS Help Desk or Jim Fisher, USGS DNS administrator.

DNS:

Test A: Test was judged successful with performance slightly slower but negligible.

Test B: Test was judged successful. Installed the ADS and verified the Unix DDNS was updated. The ADS structure was pushed to the domain server without any subsequent problems. Additionally, both a Windows 2000 Advanced server and a Professional workstation were added to the ADS tree to verify that the Unix DDNS was updated.

As of March 28, 2001, ISC has released Bind 9 (DDNS) as a full-release.

BANDWIDTH:

Test A: Test was judged successful when the VAREST04 was cut off from the WAN for 2 days and it subsequently picked up the replication updates as soon as it got re-connected.

Test B: Network traffic under normal situations is considered inconsequential. “Sniffer” results are:

Start Time 4/10/2001 1:52 PM

Duration 2:11:49.358 (2 hrs, 11 mins)

Total Bytes 6858794

Total Packets 38238

Bytes/Sec 867

Packets/Sec 4

Average Utilization 0%

Line Speed 10 mbs

Network traffic under a first of two fabricated heavy replications is considered inconsequential. Approximately 12,000 name records of about 7 fields each were created and then replicated over the WAN to VAREST04. “Sniffer” results are:

Start Time 4/18/2001 9:14 AM

Duration 3:17:52:862 (3 hrs, 17 mins)

Total Bytes 7422665

Total Packets 24126

Bytes/Sec 625

Packets/Sec 2

Average Utilization 0%

Line Speed 10 mbs

Network traffic under the second of two fabricated heavy replications is considered inconsequential. Approximately 12,000 name records were deleted and then replicated over the WAN to VAREST04. “Sniffer” results are:

Start Time 4/18/2001 1:35 PM

Duration 0:47:34.048 (47 mins, 34 secs)

Total Bytes 7877260

Total Packets 12739

Bytes/Sec 2760

Packets/Sec 4

Average Utilization 0%

Line Speed 10 mbs

Identified Issues and Problems:

WINS: None

DHCP: None. Even though during the tests there were no “reported” problems to the National Center Help desk or DHCP manager, we “heard” of DHCP problems from WRD. We have not been able to verify the cause, but suspect that running two DHCPs simultaneously may be culprit and not either the Unix or the Windows 2000 individually. The DHCP tests were run again on Tuesday 4/16 successfully with WRD able to receive DHCP addresses.

DNS: None. In configuring the DNS, the ability to have zone transfers to any server is denied because this represents a security vulnerability discovered by a security scan/probe.

BANDWIDTH: None.

Team Recommendations:

WINS: A centralized environment with a primary (placed on the same machine as the DNS server) and a secondary server.

DHCP: A DHCP server at each of the 6 major sites on their domain controller.

DNS: Active Directory Integrated Zones on all Domain Controllers and forward everything else (UNIX, Mac, NetWare, Macintoshes,) to the current BIND 4.9.7 DNS, soon to be BIND 8.2.

BANDWIDTH: Network traffic for replication will not be a concern or cause adverse effects to the current network infrastructure.

Security

Team Members: Roy McCullough (Chair), Mike Kandrac, Mike McTootle

USGS Bureau Security personnel Don Watson and Maryjon McAvery provided input and review for the team. Thanks and appreciation also goes to the full Lighthouse team in general, and Scott Brondel in particular, for their assistance.

Team Objectives:

Research EFS file recovery
Research Kerberos use with Windows 2000
Develop procedure to implement IPSec between Win2k domain controllers
Document Firewall Considerations
Develop recommendation for Organizational Unit (OU) authorizations/permissions and delegation
Document single sign-on and token-based authentication findings
Develop recommendations on adequate security logging/auditing
Research remote/dial-up authentication to Win2k domain controllers (RAS/RADIUS)
Develop security requirements (This item was added at the request of bureau security)
Develop a contingency plan for the event where one or more domain controllers are disabled (This item was added very late in the study.)

Scope: The team’s scope was to help build an infrastructure with the proper balance of security, performance and usability.

Research Findings:

Security Requirements

Administrative roles will be delegated by Organizational Unit; only a few individuals will hold access to enterprise administrator authority

Each system administrator must have an individual, non-shared account with which to perform administrator duties
IP traffic between Domain Controllers will be encrypted
Monitoring and auditing must be performed
Log files will be set to at least 50Mb and wrap as needed
Passwords must be at least eight (8) characters long, being consistent with the enterprise-wide deployment of Lotus Notes/Domino
Passwords will NOT be stored with reversible encryption
Complex passwords will be enforced via enablement of the built-in Windows 2000 password filter, passfilt.dll.

This DLL file implements the following password policy:

Passwords must be at least six (6) characters long. (Note that a separate Group Policy Object increasing the minimum length takes precedence over this specification.)
Passwords must contain characters from at least three (3) of the following four (4) classes:

English upper case letters, (A, B, C, … Z)
English lower case letters (a, b, c, … z)
Westernized Arabic numerals (0, 1, 2, …9)
Non-alphanumeric (“special characters”) such as punctuation symbols

Passwords may not contain your user name or any part of your full name.

The domain will operate in Windows 2000 native mode. This will turn off NTLM-style security DB replication to NT4 Backup Domain Controllers.
It is strongly recommended that domain controllers be protected by firewalls.
IPSec network interface cards in [at least] domain controllers are highly recommended to reduce encryption/decryption overhead on CPUs.

o Intel Pro/100S Server Adapter 10/100 -- $85 via vendor at pricewatch.com

o Fully equivalent cards are acceptable.

The high encryption pack must be installed on all domain controllers.
An approved login warning message will be provided to users prior to logon.

This message will be displayed via the group policy object for all Windows 2000 workstations and servers.
This message will be displayed to Windows NT users only if an ntconfig.pol file has been included in the netlogon share of every domain controller.
Display of this message is highly impractical on Windows 95/98/ME workstations.

Group policies at the root level must be set to allow no overrides.
There must be the ability to achieve EFS recovery via an appropriate EFS user agent recovery account.
A budget must be in place for the central enterprise administration team to obtain technical support from Microsoft or equivalent (e.g. Compaq). In the case of Microsoft, this would be in the form of a “Premier Support for the Enterprise” agreement.
The Windows 2000 default account of “administrator” will be changed to a different name.
Domain controllers must be housed in a locked room or cabinet. Access to this room/cabinet must be limited only to authorized personnel.
Selected event log information of a security nature is to be sent to a secure central server.

Security-related group policies as implemented

ADTEST USGS POLICY

Windows Settings>Security Settings>Local Policies>Audit Policy

Audit account logon events – Success, Failure
Audit account management – Success, Failure
Audit directory service access – Success, Failure
Audit logon events – Success, Failure
Audit object access – Success, Failure
Audit system events – Success, Failure

Windows Settings>Security Settings>Local Policies>Security Options

Additional restrictions for anonymous connections:

o No access without explicit anonymous permissions (if too restrictive, can downgrade to "Do not allow enumeration of SAM accounts and shares")

Digitally sign client communication (when possible)
Digitally sign server communication (when possible)
LAN Manager Authentication Level:

Send LM & NTLM – use NTLMv2 session security if negotiated

Logon warning title: WARNING TO USERS OF THIS SYSTEM
Logon warning text: (from Steve Schmidt, DOI Departmental IT Security Manager)

o This is a Department of the Interior computer system. Department of the Interior computer systems are provided for the processing of Official Unclassified U.S. Government information only. All data contained on Department of the Interior computer systems is owned by the Department of the Interior and may be monitored, intercepted, recorded, read, copied, or disclosed in any lawful manner, by authorized personnel. USERS HAVE NO REASONABLE EXPECTATION OF PRIVACY IN THE USE OF THIS SYSTEM. Unauthorized access or improper use of Department of the Interior computer systems may subject violators to criminal, civil, and / or disciplinary action up to removal from Federal service pursuant to Federal and State laws and regulations and Department of the Interior policy. Continued use of this computer, and any attached system, indicates awareness of and consent to the terms of this statement.

Secure channel: Digitally encrypt secure channel data (when possible)
Secure channel: Digitally sign secure channel data (when possible)

Windows Settings>Security Settings>Account Policies>Password Policy

Minimum password length – 8 characters
Passwords must meet complexity requirements – Enabled
Store password with reversible encryption for all users – Disabled

Windows Settings>Security Settings>Account Policies>Account Lockout Policy

Account lockout duration – 5 minutes
Account lockout threshold – 5 invalid logon attempts
Reset account lockout after – 5 minutes

Windows Settings>Security Settings>IP Security policies on Active Directory

Server (Request Security) (to force IPSec secured communication) – backed off, pending further research

For all IP traffic, always request security using Kerberos trust. Allow unsecured communication with clients that do not respond to request.

Windows Settings>Security Settings>Event Log>Settings for Event Logs

Maximum application log size – 51200 kilobytes
Maximum security log size – 51200 kilobytes
Maximum system log size – 51200 kilobytes
Restrict guest access to application log – Enabled
Restrict guest access to security log – Enabled
Restrict guest access to system log – Enabled
Retention method for application log – As needed
Retention method for security log – As needed
Retention method for system log – As needed

Default Domain Controller Policy

Computer Configuration>Windows Settings>Security Settings>Local Policies>Security Options

Do not display last user name in logon screen

Computer Configuration>Windows Settings>Security Settings>IP Security Policies

(Via right-click) Manage IP filter lists and filter actions

Select Manage Filter Lists tab; Select All Domain Controllers; Add (a filter list) (with wizard)

Source address: My IP Address
Destination address: Add specific IP addresses of all Domain Controllers
Select protocol type: Any
Edit properties

Domain Controller Secured Communications – Require IPSec ESP 3DES/SHA1 when communicating with other DCs.

IPSec

IPSec capabilities are built into Windows 2000. In this project, all Domain Controllers have been configured, via Group Policy settings, to require encryption for communications between them. The chosen encryption algorithm is Triple DES (3DES). The related integrity algorithm chosen is SHA1 (Secure Hash Algorithm).

Before a server can become a domain controller, two things must first be done to facilitate IPSec communications:

The High Encryption Pack must be installed
The server IP address must be added to the Domain Controller Policy filter list

Single sign-on and token-based authentication

“Single sign-on” is sometimes referred to as “the holy grail” of security. There are various ways of thinking of the concept of single sign-on.

Here is what single sign-on will mean in an Active Directory environment. First, the good news: consolidating numerous existing Windows domains into one forest-wide domain will allow all Windows users to be known and recognized, with all appropriate permissions throughout the domain. For Microsoft-oriented resources, this is very good.

For applications such as Lotus Notes, things get more interesting. Windows makes use of an entity called the GINA (Graphical Identification and Authentication). Unfortunately, the GINA supplied with Windows can only be used with Windows. Third-party vendors such as Novell and Lotus have written their own versions of the GINA allowing their own applications (Novell’s Netware or Lotus’ Notes/Domino, respectively), to share user authentication credentials. It is beyond the scope of this project to attempt to create a new GINA, though technically, it is possible to create a unique USGS version of the msgina.dll module. There are, of course, still many more applications and systems, such as Time & Attendance, as well as mainframe access to FFS (Federal Financial System), all of which would still require the manual entry of user credentials.

In the area of UNIX systems, it is possible, through shadow accounts, to effect single sign-on. Kerberos-authentication is possible, but would require extensive configuration and testing. This could be investigated further if the need is strong enough.

It is likely that the USGS will always have a disparate computing environment. Scientists will always have unique computing requirements that do not or cannot necessarily run on a Microsoft platform. Additionally, unless there is some top/down management mandate, all USGS owners of hardware running Microsoft operating systems cannot be counted on to join the one Windows 2000 Active Directory domain. Scientists will thus not be able to reap the full benefits of single sign-on, as herein defined.

There are vendors in the marketplace offering single sign-on solutions, where various disparate userids and passwords are stored for use on different systems, somewhat like keeping one’s key chain of keys in a safe. That “safe” then becomes the weakest link in the chain. This type of single sign-on solution is beyond the scope of this project.

Smart card technology is a promising up-and-coming technology for user authentication. This discussion will be limited to smart cards and no other token-type support (such as Secure-ID key fobs). Windows 2000 comes with built-in support for smart cards. The Microsoft Knowledge Base article Q257480 (HTML) has a very good discussion of this topic. Any authentication technology beyond Ids and passwords means budgeting for additional hardware and management of that hardware.

Firewall Considerations

For all domain controllers and users…

These ports need to be open for both inbound and outbound communication:

· 88 – Kerberos (TCP and UDP)

· 137 – NetBIOS Name Service (TCP and UDP)

· 138 – NetBIOS Datagram Service (UDP)

· 139 – NetBIOS Session Service (TCP)

· 500 – Internet Key Exchange (IPSec) (UDP)

· 3389 – Terminal Server (UDP)

· 636 – LDAP SSL

· 3268 – Global Catalog LDAP

· 3269 – Global Catalog LDAP SSL

Note that NetBIOS needs to be available to support pre-Windows 2000 clients, which are not IPSec capable.

These protocols need to be open:

50 - Encapsulation Security Payload (ESP) IPSec
51 - Authentication Header (AH) IPSec

RAS/RADIUS

The USGS Computer and Network Security Handbook, Section 7.4, Remote Systems Administration, states:

“System administrators, when using administrator privileges to access their hosts from a ‘remote’ terminal, must protect their system authentication through the use of either a direct connection (hard-wired coaxial cable) or encryption.”

There are multiple techniques available for remote administration for Windows 2000. Among options available are:

Connect to the desired server via an IPSec-enabled connection. This capability is built into Windows 2000. This might include either Terminal Services or Terminal Services Web Connection.
Connect using a Virtual Private Network (VPN). A contract is currently in place for AT&T VPN services for dial-up users.

Some miscellaneous findings:

Windows 2000 provides the ability to host a RAS server
The USGS must develop a policy on whether RAS should be supported solely on an enterprise-wide level vs. a local level, or whether some combination is optimal and approved.
Testing was limited.
Use of a customized “snap-in” on a system administrator’s desktop for administration will be a recommended method of access for this task.
The Bureau needs some form of remote access to its network, be it LAN or WAN. System administrators need access as well as many end-users. The “Flexi-place” initiative creates significant demand for remote access, to include support for DSL and cable modem speeds.
Only enterprise domain administrators would have any type of direct access to Domain Controllers.

Due to separate, ongoing enterprise-level remote access research efforts and time constraints, RADIUS (Remote Authentication Dial-In Service) options were not investigated.

OU Authorizations & Permissions

The full Lighthouse team discussed this topic. The following model for OU’s and associated groups was chosen: (The Reston OU was used as an example.)

Reston

Reston Full Admin

Reston Full Admin Group

Reston Delegators

Reston Delegators Group

Reston Admins

Reston Admins Group

Contingency Planning

If one or more domain controllers should become disabled due to hardware or software problems, the DC environment on the given machine(s) must be re-established. These two basic tasks must be achieved:

Re-install the Windows 2000 Server operating system per instructions documented by the Lighthouse Documentation Team.
Perform an Authoritative Restore from backup media

EFS File Recovery

The Encrypting File System (EFS) is a standard, built-in component of every copy of Windows 2000. A Certificate Authority (CA) must be established at the domain controller level. A user recovery agent account must be established to provide decryption of user files if required by the owner or properly authorized authority. By default, this ability is present on accounts of enterprise domain administrators.

Scanning Results

On Wednesday, March 14, 2001, the test domain controllers were scanned by special software designed to probe for security vulnerabilities.

The scan revealed:

Ftpd args core dump
IIS UNICODE translation error allows remote command execution (CAN-2000-0884)
DNS server inverse queries
FrontPage 98 Server Extensions DVWSSR.DLL file could allow remote ASP source
LDAP null base returns information
Anonymous FTP enabled
ICMP timestamp requests
NIS Yellow Pages (YP) service is running
Yppasswdd service

Actions were taken to address these identified vulnerabilities.

Scan results after addressing vulnerabilities

On Monday, April 9, 2001, the test domain controllers were scanned again to probe for security vulnerabilities.

The scan revealed:

Superfluous NFS daemon
DNS server inverse queries
LDAP null base returns information
NFS mount daemon operating on an unreserved port
Tribal Flood Network 2000 denial of service tool
ICMP timestamp requests
NFS service
RPC nlockmgr service
Unix running NFS

Five of the above items are necessary services needed for UNIX interoperability. These five were all in reference to NFS (Network File System). This includes the superfluous NFS daemon, the NFS mount daemon operating on an unreserved port, the NFS service, the RPC nlockmgr service, and Unix running NFS. The DNS, LDAP and ICMP-related items are considered to be of a low security risk. Regardless, efforts will be made to reduce or eliminate risk in these areas. The Tribal Flood Network 2000 denial of service tool detection sparked much concern and discussion. After additional scans and analysis, it was determined that the scan software, running in “heavy scan” mode, produced a “false positive”.

Important: Please note that not all of the “vulnerabilities” listed by the probe software necessarily apply to the Microsoft environment.

Test Results:

The following items were among those tested, specifically with an eye towards security:

IPSec
Data encryption
Effects of policies

It was learned that the fewer group policy objects, the better. That is, use the existing “default” policies, adjusting them as we see fit, but try to avoid creating completely new policies. Instead of having a “ADTEST USGS Policy”, we should simply use “Default Domain Policy”. Instead of having a “IPSec Domain Controller Policy” and a “Auditing Domain Controller Policy”, adjustments should likely just be made in the “Default Domain Controllers Policy”.

Issues/Problems

A problem with the logon banner containing legal warning text was found to display incorrectly. This issue brought the need for a support contract into light.

The IP Security policy for the Server to Request Security forcing IPSec secured communication had to be backed off, pending further research. Specifically, the policy is “For all IP traffic, always request security using Kerberos trust. Allow unsecured communication with clients that do not respond to request.”

To Be Investigated Further:

While not a direct security requirement, backups must be performed on a routine basis and plans must be in place to restore the system in the event of a disaster.
BIOS-level modifications to domain controllers

Passwords
Boot Sequence (drives)

Recommendations:

Create a special account to perform backups – example: Reston_VA_Backup
Insure that permissions for delegated OU’s/groups are part of the migration effort
Proceed towards production deployment
Better document IPSec setup

Require IPSec network interface cards as part of the purchase of hardware to be acquired for the production servers. These network cards will reduce encryption/decryption overhead on the CPUs.

Document EFS Recovery Agent setup
Set AD restore mode password to special, unique value
Create policies on test DOI root servers
For the production deployment phase, form a security team to focus on security issues; at a minimum, at least one security specialist should serve on an enterprise-wide deployment and operations committee
Firewall considerations for support of the Windows 2000 Active Directory environment should be incorporated into an enterprise-wide firewall policy document
Review and acquire log management software and suitable non-domain controller machine

Meta-Directory

Members: Larry McIrvin (Chair), Scott Brondel and Mike Kandrac

Team objectives: Naming standards of objects and attributes, Replication and schema agreements and Object and attribute ownership issues.

Scope of Test: Configure and test Meta-Directory products that are available.

Description of the Tests Performed:

A Windows 2000 server was setup as a single server in the Active Directory (AD) forest. The following products were installed on the server, Lotus Domino 5.03, Novell NDS eDirectory 8.5 and dirXML. Users were created in Domino and propagated to AD. Changes were made to users in Domino and they were propagated to AD. Because of the cost to purchase the license ($5.61 per person and the price goes up on May 30, 2001) further testing on dirXML was not performed. If DOI implements dirXML the USGS would be covered with their license and using dirXML would be an option.

Microsoft Metadirectory Services (MMS) was configured as follows:

An Advanced Server member was added to the adtest.usgs.gov domain. MMS 2.2 was installed on the server and configured to synchronize users from the Lotus Domino Address Book to the adtest domain.

The following fields were populated in AD:

User logon name
First name
Middle Initial
Last name
Company
E-mail
Telephone number
Fax
Pager
Mobile
Office

Street

City

State

Country
Title

Test Results:

The MMS Domino Migration Agent (MA) imported 13,329 entries from the Notes Database into the Metadirectory. The MMS Together Administration Management Agent (TAMA) created 12,995 user objects in the AD Connector Space. The MMS AD MA created 12,698 user accounts in the "adtest.usgs.gov" AD Domain.

All AD user accounts were created under a top-level "MMS Test" Organizational Unit (OU). Under "MMS Test", MMS created a hierarchy of 23 OUs which mirror the Notes user structure. As the USGS design calls for, these user accounts are all disabled and can be moved to other locations in the AD prior to being enabled. These disabled accounts do not have a password and passwords will have to be set prior to enabling the accounts.

After configuring "Attribute Flow Rules" for the Domino and AD MAs, MMS was scheduled to run hourly to find new objects, and attribute changes. Events are scheduled from 5:00am EST through 9:00pm EST every day on an hourly basis. The Domino MA runs on the hour, the TAMA runs at quarter-past, and the AD MA runs on the half-hour.

We customized several default MMS scripts to accomplish some field mapping rules that we had previously defined. The MMS configuration has been documented for the Domino, TAMA and AD MAs.

Identified Issues/Problems:

Problem: The Domino Directory has several hundred user names that caused errors in the import process. Most of these user names are not real users and do not have standard information in the fields.

Recommendation: A detailed log of these errors will need to be created and each name checked to determine if it is a real user. If it is, the problem will need to be resolved, hopefully by correcting the data in Domino.

Problem: Changes made to the user field information is not being propagated from the Metaverse to the AD for users that have been moved to another container. In an attempt to fix the problem of not finding moved users the AD Migration agent script was changed. This change caused the AD MA to start deleting OUs that it had not created and the MMS AD MA had to be shutdown.

Recommendation: Microsoft Consulting Engineers have recommended the following:

The biggest obstacle to solving this problem is the fact that USGS does not have a consistent identifying attribute in Notes. In AD, an Object’s ultimate identifying attribute is the GUID, which allows you to change the alias or the display names and still maintain consistency. Whenever you change an alias in Notes, AD consider that as a new object because you are using the alias as the identifying attribute. The solution is to either create a constant attribute in Notes, which we can map to the GUID in AD, or allow AD GUID to flow back into Notes and become the identifying attribute.

Discussions with the Lotus team have resulted in an agreement to populate the User ID, also called the EmployeeID, field in Domino and let it flow to MMS. The Domino MA has been modified and tested to bring this field into MMS. Modifying the AD MA to connect the EmployeeID to the GUID will require help from the Microsoft consulting engineers.

Since name changes are a two-step manual process in Domino, no attempt was made to check the name change propagation to AD. This process will also work better using the EmployeeID field.

Critical things that still needs to be done, but were outside the scope for this project:

Configure and test name changes.
Test failover of one MMS site to the backup.
Configure the AD MA to allow moving of users.

Team Recommendations:

Procure two servers with Windows 2000 Advanced Server operating system and MMS installed and configured. The MMS software is free, but a consultant will be required to install and configure the software.

Interoperability

Members: Michael McTootle (Chair), Scott Brondel, Sam Martinez, and Roy McCullough

Team objectives:

Examine and identify potential Microsoft Windows 2000 interoperability issues with existing networks, servers, desktops, printers, data, and applications.

Scope:

Analyze and test the following Windows 2000 products that support Windows 2000 interoperability with Novell Netware, Windows 2000/NT/9x, Macintosh, UNIX volumes, directories, directory map objects, printers, and print queues.

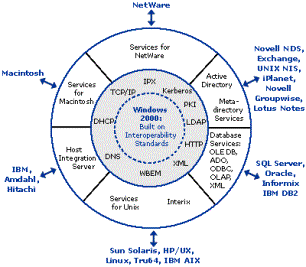

Interoperability Overview:

Windows 2000 provides interoperability support for several network and communications protocols, including Transmission Control Protocol/Internet Protocol (TCP/IP), Internetwork Packet Exchange/Sequenced Packet Exchange (IPX/SPX), Appletalk, Lightweight Directory Access Protocol (LDAP), Dynamic Host Configuration Protocol (DHCP), and the Domain Name Service (DNS) protocol. Windows 2000 protocol support provides access to a variety of operating systems; Novell NetWare, Macintosh, HP/UX, Solaris, IBM AIX, and Linux; and with directory-based services such as Novell NDS, Lotus Notes, Exchange, and other LDAP-based directories.

Interoperability features and tools:

· Netware

Gateway Services for Netware (GSNW)
Client Services for Netware (CSNW)
Services for Netware (SFN5)

File and Print Services for Netware (FPSN)
Microsoft Directory Synchronization Services (MSDSS)
File Migration Utility (FMU)

· Windows 9x/NT/2000

· Macintosh

Services for Macintosh (SFM)

File Server for Macintosh (MacFile)
Print Server for Macintosh (MacPrint)

· UNIX

Services for UNIX ver 2.0 (SFU2)

· Single Signon

Interix

Description of the Test:

The interoperability tests evaluated cross platform access to shared file and printer resources between Windows, Netware, Macintosh, and UNIX. The test lab used the following systems to evaluate, identify, and demonstrate the possible Windows 2000 interoperability issues and solutions:

Interoperability Test Lab Systems:

Novell Netware 4.11 File Server
Windows 2000 Server w/Domain Controller & Active Directory
Windows 2000 Server (Member) & 2000 Professional Workstation
Windows NT 4 Server & NT 4 Workstation
Windows 98 & 95 Workstations
Macintosh Clients Workstations
Red Hat Linux 6.1 Server & Workstation
Solaris Server & Workstation

Netware:

Test: Gateway Services for Netware (GSNW)

GSNW is server based and included with Windows 2000 Server. It requires the NWLink IPX/SPX/NetBIOS Compatible Transport Protocol (NWLink). GSNW allows Windows 2000 Servers to connect to NetWare 3.x , 4.x, and 5.x file and print resources through a single gateway account. The gateway allows client computers running only the Microsoft client software to access shared NetWare file and printers.

Test Results: Windows clients accessed and attached to Netware shared files and printers through the GCNW account successfully. Network security and login scripts were managed by either Windows or Netware. GSNW used the IPX protocol to interoperate with NetWare version 5.x. The IP protocol is not yet supported.

GSNW Note: The Windows clients needing little access to Netware resources will not have to install the NWLink protocol which will reduce network traffic.

Test: Client Services for Netware (CSNW)

CSNW is client based and included with Windows 2000 Professional. It requires the NWLink IPX/SPX/NetBIOS Compatible Transport Protocol (NWLink). CSNW allows Windows 2000 Professional clients to make direct connections to NetWare 2.x, 3.x, 4.x, and 5.x file and printer resources.

Test Results: Windows clients are able to directly access and attach to Netware shared files and printers successfully. Network security and login scripts can be managed by either Windows or Netware. CSNW clients used a single login and password for both Windows and NetWare. The local Windows 2000 Pro desktop printers were shared with other Netware users on the network.

CSNW Note: The Windows clients needing frequent access to Netware resources will have to install both the NWLink and CSNW software and will be able to directly attach Netware NDS or Bindery objects.

Test: Services for Netware (SFN5)

A separate product, SFN5 provides several components that allow users to integrate Windows 2000 into their existing NetWare environments. It also provides directory synchronization with NDS and Netware 3.x binderies and file and print server emulation software and tools to migrate NDS information and files to the Windows 2000 server.

SFN5 Components:

File and Print Services for Netware (FPSN) - enables a Windows 2000 Server to function as a NetWare file and print server, providing file and print services directly to NetWare and compatible client computers.
Microsoft Directory Synchronization Services (MSDSS) - synchronizes information stored in the Windows 2000 Active Directory service with the Novell Directory Service (NDS) and NetWare 3.x binderies.
File Migration Utility (FMU) - automates the migration of NetWare files to Windows 2000 Server and preserves file access control information.

SFN5 Results: To be evaluated and tested later, if needed.

Windows:

Test: Microsoft Windows 9x/NT/20000

Windows 2000 Professional can be integrated into existing Windows NT Server 4.0 or 3.51 network environments. Windows 2000 Server interoperates with Windows 3.x, 95, 98, NT Workstation 4.0, or NT Server 4.0. Windows client software is available for Windows 95, Windows 98, and Windows NT Workstation 4.0 clients which will allow them to access the Windows 2000 network.

Test Results: Windows 2000 Server and Professional successfully provided shared file and printers to other Windows, Netware, Macintosh, and UNIX clients.

Windows Note: The Windows 2000 interoperability tests were preformed inside and outside of the USGS’s Windows 2000 Active Directory test domain.

Macintosh:

Test: Services for Macintosh (SFM)

Included with Windows 2000 Server and part of the Services for Macintosh, it requires the AppleTalk network integration service AppleTalk protocol. SFM allows a Windows 2000 server to function as a file server, print server, remote access server, and AppleTalk router.

File Server for Macintosh (MacFile/FSM)

FSM allows Macintosh clients and Windows clients to share files. It designates Windows 2000 directories as shared Macintosh-accessible volumes, ensures Macintosh filenames are legal NTFS names, and handles permissions.

Test Results: FSM successfully enabled both Windows and Macintosh clients to share files through individual Windows user accounts. Macintosh client passwords are limited to 7 characters. FSM allowed cross platform applications to create, modify, and delete Windows and Macintosh cross platform files (Applications and Files that work with either Windows or Macintosh).

FSM Note: The Macintosh client does not need any additional software to access the Windows 2000 files. The optional Macintosh User Authentication Module (UAM) provides secure encrypted authentication to Windows 2000 Servers and enables the Macintosh clients to use passwords longer than 7 characters . Macintosh-accessible volumes must be created on an NTFS partition or on a Compact Disc File System (CDFS) volume. Macintosh shared volumes created by Windows cannot exceed 12 characters and AppleShare Client 3.8 or newer provides large volume support.

Print Server for Macintosh (MacPrint/PSM)

Included with Windows 2000 Server, allows Macintosh clients to send and spool documents to printers attached to a Windows 2000 Server, and allows Windows 2000 clients to send documents to printers anywhere on an AppleTalk network.

Test Results: PSM successfully allowed Macintosh clients to access shared non-postscript Windows 2000 printers. Windows 2000 clients with postscript drivers can access AppleTalk PostScript printers. Print jobs are managed via the printer folder. Macintosh clients have to use the Chooser option to connect to printers that are set up for as AppleTalk and Windows 2000 print devices. Windows and Macintosh clients continued to work while their print jobs are being processed.

PSM Note: A Macintosh client (but not a Windows-2000 client) can send a PostScript job to any Windows-2000 printer and provide a printer share for the entire network through a single MACUSER account. Shared printers used only by Windows-2000 should be captured to ensure print jobs are sent to the print spooler instead of the print server.

UNIX:

Test: Services for UNIX v2 (SFU2)

A separate product, SFU2 provides a set of components that allow Windows NT 4.0 and Windows 2000 systems to share resources with UNIX-based systems. The management component enables simplified network, security, and account administration between Windows 2000 and UNIX.

SFU2 Components:

Client for NFS - allows Windows NT and Windows 2000 clients to mount exported file systems directly from UNIX NFS servers as if they were regular Windows shares.
Server for NFS - shares directories from Windows NT-based and Windows 2000-based servers as if they were native UNIX exports.
Gateway for NFS - shares UNIX NFS exports as Windows-based shared directories, allowing any Windows client access without installing NFS client software.
Server for PCNFS - enables Windows 2000 to act as a PCNFS server, providing seamless user authentication services when connecting to NFS servers.
UNIX Utilities - enables you to run familiar UNIX commands such as cat, grep, ls, ps, rshsvc, and vi natively from Windows NT or Windows 2000.
Korn Shell - provides a full-featured implementation that enables you to run UNIX shell scripts from Windows NT and Windows 2000.

Telnet Client - enables faster character-based and script-based remote access and administration.

Telnet Server - provides security and simplified logins, and supports both stream and console mode.
ActiveState ActivePerl 5.6 - provides the ability to automate network administrative tasks by running new or existing Perl scripts natively on Windows NT or Windows 2000.
NIS to Active Directory Migration Wizard - consolidates account management by moving UNIX source files, such as password and host files, from NIS domains into the Windows 2000 Active Directory service.
Server for NIS - enables a Windows 2000 domain controller to act as the primary NIS server, integrating NIS domains with Windows 2000 domains, allowing administrators to manage an NIS domain from Active Directory.
2-way Password Synchronization - provides the ability to synchronize passwords from both platforms, making it easier for users to maintain one password for both Windows and UNIX.

User Name Mapping - associates Windows and UNIX user names, allowing users to connect to NFS network resources seamlessly.

Test Results: The SFU2 components successfully provided UNIX integration with Windows NT and 2000 networks. SFU2 allowed both Windows and UNIX users to share and provide shared files and printers. SFU2 provided Windows based administration for UNIX resources, network security, and TCP/IP utilities.

SFU2 Note: SFU2 must be installed on a domain controller with Active Directory. SFU2 provide support for Solaris 2.6 & above, HP-UX 10.20 & above, Tru64 UNIX 5.0 & above, and Linux Redhat 5.1 & above.

Test: Interix

Interix provides a environment to run UNIX applications and scripts on the Window NT® and Windows® 2000 operating systems.

Test Results: To be evaluated and tested later, if needed.

Test: Single Sign On (SSO)

Single sign on between Windows 2000 and UNIX can be provided using SFU2, Windows 2000 can provide single sign on with Netware using Client Services for Netware.

Test Results: To be evaluated and tested later, if needed.

Interoperability Topics needing further discussion:

Services for Netware v5

File and Print Services for Netware v5

· Microsoft Directory Synchronization Services

· File Migration Utility

AppleTalk File Protocol over TCP/IP support

Macintosh’s Windows 2000 Encrypted File System (EFS) support

Remote Access Services for Macintosh

Interix

Single Sign-On

Interoperability Recommendations:

Review the other Lighthouse Team recommendations, and Migrate to a Microsoft Windows 2000 managed network that can provide possible solutions to many existing interoperability issues within the USGS computing environment. Windows 2000 interoperability features and tools will improve the computer users’ communication with other operating systems, access to shared Windows, Netware, Macintosh, and UNIX files and printers, Windows network security and administration, and USGS application integration with existing USGS data sources.

Windows 2000 Interoperability Related Links:

http://www.microsoft.com/Windows2000/library/interop/

http://www.microsoft.com/windows2000/guide/server/features/interop.asp#Application

Windows 2000 Server

http://windows.microsoft.com/windows2000/en/advanced/help/default.asp

Upgrading from Previous Versions of Windows

http://www.microsoft.com/windows2000/upgrade/path/default.asp

http://www.microsoft.com/windows2000/news/bulletins/adextension.asp

Netware

http://www.microsoft.com/windows2000/library/interop/netwareinterop.asp

Macintosh

http://www.microsoft.com/mac/products/win2ksfm/

UNIX

http://www.microsoft.com/windows2000/sfu/

http://www.microsoft.com/windows2000/sfu/unzippeddocs/sfuwp.doc

Interix

http://www.microsoft.com/windows2000/interix/

Other Related Windows 2000 Material:

Microsoft Windows 2000 Server Administrator's Companion (Microsoft Press)

Microsoft Windows 2000 Administrators Pocket Consultant (Microsoft Press)

Windows 2000 System Administrator's Black Book (Coriolis Group)
Microsoft Windows 2000 Professional Resource Kit (Microsoft Press)

UNIX and Windows 2000 Integration Toolkit (Wiley, John & Sons)

Glossary of Terms

access control -- the management of permissions for logging on to a computer or network.

ACE -- see access control entry.

access control entry (ACE) -- each ACE contains a security identifier (SID), which identifies the principal (user or group) to whom the ACE applies, and information on what type of access the ACE grants or denies.

access control list (ACL) -- a set of data associated with a file, directory, or other resource that defines the permissions that users and/or groups have for accessing it. In the Active Directory™ service, an ACL is a list of access control entries (ACEs) stored with the object it protects. In the Windows NT® operating system, an ACL is stored as a binary value, called a security descriptor.

ACL -- see access control list.

Active Directory -- a structure supported by Windows® 2000 that lets any object on a network be tracked and located. Active Directory is the directory service used in Windows 2000 Server and provides the foundation for Windows 2000 distributed networks.

Active Directory Service Interfaces (ADSI) -- a client-side product based on the Component Object Model (COM). ADSI defines a directory service model and a set of COM interfaces that enable Windows NT and Windows 95 client applications to access several network directory services, including Active Directory. ADSI allow applications to communicate with Active Directory.

ADSI provides the means for directory service clients to use one set of interfaces to communicate with any namespace that provides an ADSI implementation. ADSI clients gain a simpler access to namespace services by using ADSI in place of the network-specific application programming interface (API) calls. ADSI conforms to and supports standard COM features. ADSI also defines interfaces and objects accessible from automation-compliant languages such as Java, Visual Basic®, and Visual Basic Scripting Edition (VBScript), as well as from non-automation-compliant languages such as C and C++, which enhance performance. In addition, ADSI supplies its own OLE database provider, and so fully supports any clients already using an OLE database, including those using ActiveX® technologies.

ADSI -- see Active Directory Service Interfaces.

attribute -- a single property of an object. An object is described by the values of its attributes. For example, a car can be described by its attributes: make, model, color, and so on. The term attribute is often used interchangeably with property, which means the same thing. Attributes are also data items used to describe the objects that are represented by the classes defined in the schema. Attributes are defined in the schema separately from the classes; this allows a single attribute definition to be applied to many classes. See also object.

authentication -- verifying the identity of a user who is logging on to a computer system or verifying the integrity of a transmitted message.

backup domain controller (BDC) -- in a Windows NT Server 4.0 or earlier domain, a computer running Windows NT Server that receives a copy of the domain’s directory database, which contains all account and security policy information for the domain. The copy is synchronized periodically and automatically with the master copy on the primary domain controller (PDC). Backup domain controllers also authenticate user logons and can be promoted to function as PDCs as needed. Multiple backup domain controllers can exist on a domain.

In a Windows 2000 domain, backup domain controllers are not required; all domain controllers are peers, and all can perform maintenance on the directory. Windows NT 4.0 and Windows NT 3.51 backup domain controllers can participate in a Windows 2000 domain when it is running in mixed mode. See also domain controller, primary domain controller.

container -- a special type of Active Directory object. A container is like other directory objects in that it has attributes and is part of the Active Directory namespace. However, unlike other objects, it does not usually represent something concrete. It is the container for a group of objects and other containers. See also object.

database layer -- an architectural layer of Active Directory that isolates the upper layers of the directory service from the underlying database system by exposing application programming interfaces (APIs) to the Directory System Agent (DSA) layer so that no calls are made directly to the Extensible Storage Engine (ESE).

delegation -- allows a higher administrative authority to grant specific administrative rights for containers and subtrees to individuals and groups. This eliminates the need for domain administrators with sweeping authority over large segments of the user population. Access control entries (ACEs) can grant specific administrative rights on the objects in a container to a user or group. Rights are granted for specific operations on specific object classes via ACEs in the container’s Access Control List (ACL).

For example, to allow user “James Smith” to be an administrator of the "Corporate Accounting" organizational unit, you would add ACEs to the ACL on “Corporate Accounting” as follows:

“James Smith”; Grant; Create, Modify, Delete; Object-Class User

“James Smith”; Grant; Create, Modify, Delete; Object-Class Group

“James Smith”; Grant; Write; Object-Class User; Attribute Password

Now James Smith can create new users and groups in Corporate Accounting and set the passwords on existing users, but he cannot create any other object classes and he cannot affect users in any other containers (unless, of course, he is granted that access by ACEs on the other containers).

directory -- a hierarchical structure that stores information about objects on the network.

directory service -- such as Active Directory; provides the methods for storing directory data and making this data available to network users and administrators. For example, Active Directory stores information about user accounts, such as names, passwords, phone numbers, and so on, and enables other authorized users on the same network to access this information. See also Active Directory, directory partition.

directory-enabled networking (DEN) -- the management of network elements such as routers, applications, and users from a central repository of information about users, applications, and network resources.

directory partition -- a contiguous subtree of the directory that forms a unit of replication. A given replica is always a replica of some directory partition. Active Directory is made up of one or more directory partitions.

In Active Directory a single server always holds at least three directory partitions:

The schema

The configuration (replication topology and related metadata)

One or more per-domain directory partitions (subtrees containing the actual objects in the directory)

The schema and configuration are replicated to every domain controller in a given forest. The per-domain directory partition is replicated only to domain controllers for that domain.

distinguished name -- identifies the domain that holds the object as well as the complete path through the container hierarchy by which the object is reached. Every object in the Active Directory has a unique distinguished name. A typical distinguished name might be: CN=JamesSmith,CN=Users,DC=Microsoft,DC=Com. This distinguished name identifies the “James Smith” user object in the Microsoft.com domain.

DNS -- see Domain Name System.

domain -- a single security boundary of a Windows NT-based computer network. Active Directory is made up of one or more domains. On a standalone workstation, the domain is the computer itself. A domain can span more than one physical location. Every domain has its own security policies and security relationships with other domains. When multiple domains are connected by trust relationships and share a common schema, configuration, and global catalog, they constitute a domain tree. Multiple domain trees can be connected together to create a forest. See also domain controller, domain local group.

domain controller -- a Windows NT-based server holding an Active Directory partition. See domain.

domain local group -- can contain users and global groups from any domain in the forest, universal groups, and other domain local groups in its own domain. A domain local group can only be used on ACLs in its own domain. See also domain, forest.

Domain Name System (DNS) -- hierarchical distributed database used for name/address translation and client-server rendezvous. Domain Name System is the namespace used on the Internet to translate computer and service names into TCP/IP addresses. Active Directory uses DNS as its location service, and so clients find domain controllers via DNS queries.

Extensible Storage Engine (ESE) -- the Active Directory database engine. ESE (Esent.dll) is an improved version of the Jet database that is used in Microsoft Exchange Server versions 4.x and 5.5. It implements a transacted database system, which means that it uses log files to ensure that committed transactions are safe.

forest -- a group of one or more Active Directory trees that trust each other. All trees in a forest share a common schema, configuration, and global catalog. When a forest contains multiple trees, the trees do not form a contiguous namespace. All trees in a given forest trust each other through transitive bi-directional trust relationships. Unlike a tree, a forest does not need a distinct name. A forest exists as a set of cross-referenced objects and trust relationships known to the member trees. Trees in a forest form a hierarchy for the purposes of trust. See also tree, global catalog.

global catalog (GC) -- the global catalog contains a partial replica of every Windows 2000 domain in the directory. The GC lets users and applications find objects in an Active Directory domain tree given one or more attributes of the target object. It also contains the schema and configuration of directory partitions. This means the global catalog holds a replica of every object in the Active Directory, but with only a small number of their attributes. The attributes in the global catalog are those most frequently used in search operations (such as a user’s first and last names, logon names, and so on), and those required to locate a full replica of the object. The GC allows users to find objects of interest quickly without knowing what domain holds them and without requiring a contiguous extended namespace in the enterprise. The global catalog is built automatically by the Active Directory replication system.

GC -- see global catalog.

global catalog server -- a Windows 2000 domain controller that holds a copy of the global catalog for the forest. See also global catalog.

global group -- can appear on ACLs anywhere in the forest and may contain users and other global groups from its own domain.

group -- see global group, domain local group, universal group, and Group Policy.

Group Policy -- refers to applying policy to groups of computers and/or users contained within Active Directory containers. The type of policy includes not only registry-based policy found in Windows NT Server 4.0, but is enabled by Directory Services to store many types of policy data, for example: file deployment, application deployment, logon/logoff scripts and startup/shutdown scripts, domain security, Internet Protocol security (IPSec), and so on. The collections of policies are referred to as Group Policy objects (GPOs).

Group Policy object (GPO) -- a virtual collection of policies. It is given a unique name, such as a globally unique identifier (GUID). GPOs store group policy settings in two locations: a Group Policy container (GPC) (preferred) and a Group Policy template (GPT). The GPC is an Active Directory object that stores version information, status information, and other policy information (for example, application objects). The GPT is used for file-based data and stores software policy, script, and deployment information. The GPT is located on the system volume folder of the domain controller.

A GPO can be associated with one or more Active Directory containers, such as a site, domain, or organizational unit. Multiple containers can be associated with the same GPO, and a single container can have more than one associated GPO.

In addition, by default every computer receives a local Group Policy object (LGPO) that contains only security-specific policies. It is also possible for the administrator to set and apply different local group policies on individual computers. This is useful for computers that are not members of a domain, or computers that the administrator wishes to exempt from Group Policy inherited from the domain. See Group Policy.

GPO -- See Group Policy object.

hierarchical namespace -- a namespace, such as the DNS namespace and the Active Directory namespace, that is hierarchically structured and provides rules that allow the namespace to be partitioned. See also namespace.

Kerberos -- a security system that authenticates users. Kerberos doesn’t provide authorization to services or databases; it establishes identity at logon, which is used throughout the session. The Kerberos protocol is the primary authentication mechanism in the Windows 2000 operating system.

Knowledge Consistency Checker (KCC) -- a built-in service that runs on all domain controllers and automatically establishes connections between individual machines in the same site. These are known as Windows 2000 Directory Service connection objects. An administrator may establish additional connection objects or remove connection objects. At any point, however, where replication within a site becomes impossible or has a single point of failure, the KCC will step in and establish as many new connection objects as necessary to resume Active Directory replication.

Lightweight Directory Access Protocol (LDAP) -- a protocol used to access a directory service. LDAP support is currently being implemented in Web browsers and e-mail programs, which can query an LDAP-compliant directory. LDAP is a simplified version of the Directory Access Protocol (DAP), which is used to gain access to X.500 directories. It is easier to code the query in LDAP than in DAP, but LDAP is less comprehensive. For example, DAP can initiate searches on other servers if an address is not found, while LDAP cannot in its initial specification. Lightweight Access Directory Protocol is the primary access protocol for Active Directory.

mixed mode -- allows domain controllers running both Windows 2000 and earlier versions of Windows NT to co-exist in the domain. In mixed mode, the domain features from previous versions of Windows NT Server are still enabled, while some Windows 2000 features are disabled. Windows 2000 Server domains are installed in mixed mode by default. In mixed mode the domain may have Windows NT 4.0 backup domain controllers present. Nested groups are not supported in mixed mode. Compare to native mode.

multi-master replication -- a feature of Active Directory that provides and maintains copies of the directory across multiple servers in a domain. Since all replicas of a given directory partition are write able, updates can be applied to any replica of a given partition. The Active Directory replication system propagates the changes from a given replica to all other replicas. Replication is automatic and transparent.

Active Directory multi-master replication propagates every object (such as users, groups, computers, domains, organization units, security policies, and so on) created on any domain controller to each of the other participating domain controllers. If one domain controller in a domain slows or fails, other domain controllers in the same domain can provide the necessary directory access because they contain the same directory data. See also replication.

native mode -- when all the domain controllers in a given domain are running Windows 2000 Server. This mode allows organizations to take advantage of new Active Directory features such as Universal groups, nested group membership, and inter-domain group membership. Compare to mixed mode.

namespace -- a name or group of names that are defined according to some naming convention; any bounded area in which a given name can be resolved. Active Directory is primarily a namespace, as is any directory service. A telephone directory is also a namespace. The Internet uses a hierarchical namespace that partitions names into categories known as top-level domains such as .com, .edu, and .gov, which are at the top of the hierarchy.

name resolution -- the process of translating a name into some object or information that the name represents. A telephone book forms a namespace in which the names of telephone subscribers can be resolved into telephone numbers. The Windows NTFS file system forms a namespace in which the name of a file can be resolved into the file itself. Similarly, Active Directory forms a namespace in which the name of an object in the directory can be resolved into the object itself.

object -- a distinct, named set of attributes that represents something concrete, such as a user, a printer, or an application. The attributes hold data describing the thing that is identified by the directory object. Attributes of a user might include the user’s given name, surname, and e-mail address.

object identifier -- a number identifying an object class or attribute in a directory service. Object identifiers are issued by issuing authorities and form a hierarchy. An object identifier is represented as a dotted decimal string (for example, “1.2.3.4”). Enterprises (and individuals) can obtain a root object identifier from an issuing authority and use it to allocate additional object identifiers. For example, Microsoft has been issued the root object identifier of 1.2.840.113556. Microsoft manages further branches from this root internally. One of these branches is used to allocate an object identifier for Active Directory classes, another for Active Directory attributes, and so on. Most countries in the world have an identified national registration authority (NRA) responsible for issuing object identifiers to enterprises. In the United States, the NRA is the American National Standards Institute (ANSI). An enterprise can register a name for the object identifier as well. There is a fee associated with both root object identifiers and registered names. For details, contact the NRA for your country. The International Standards Organization recognizes NRAs and maintains a list of contacts on the ISO Web site. See also object, attribute.

organizational unit (OU) -- a container object that is an Active Directory administrative partition. OUs can contain users, groups, resources, and other OUs. Organizational Units enable the delegation of administration to distinct subtrees of the directory.

OU -- see organizational unit.

parent-child trust relationship -- the two-way, transitive trust relationship that is established when you add a domain to an Active Directory tree. The Active Directory installation process automatically creates a trust relationship between the domain you are creating (the new child domain) and the parent domain.

partition -- a complete unit of replication within the store. See also directory partition.

PDC -- see primary domain controller.

PKI -- see public key infrastructure.

policy -- the set of rules that govern the interaction between a subject and an object. For example, when an Internet Protocol (IP) security agent (the subject) starts on a given computer (the object) a policy determines how that computer will participate in secure IP connections.

policy engine -- software that executes at decision points to perform policy selection, to evaluate conditions, and determine what actions must be performed. The concept of the policy engine is quite diffuse; policy engine functionality will often be spread through many parts of the distributed system. For example, Windows 2000 provides a policy infrastructure that includes a policy store (Group Policy object), a policy engine that runs as part of user logon (WinLogon), and an API for services to invoke the policy selection process on demand (GetGPOList). Some applications and services will use WinLogon integration to apply their policies to users; others will use GetGPOList to implement their own policy decision and enforcement points.

primary domain controller (PDC) -- in a Windows NT Server 4.0 or earlier domain, the PDC is the computer running Windows NT Server that authenticates domain logons and maintains the directory database for a domain. The PDC tracks changes made to accounts of all computers on a domain. It is the only computer to receive these changes directly. A domain has only one primary domain controller. In Windows 2000, one of the domain controllers in each domain is identified as the PDC for compatibility with down-level clients and servers. See domain controller, backup domain controller.

profile -- a collection of information selected and applied to the interaction between a subject and an object by an action that is the outcome of evaluation of policy conditions. The content of a profile is specific to the subjects and objects in question. Profiles can further simplify administration by reducing the total number of policies. For example, a given server application may have a large number of configuration parameters. A policy for that application can reference the profile; this is simpler than using multiple policies to accomplish the same thing. See policy, object.

public key infrastructure (PKI) -- a policy for establishing a secure method for exchanging information within an organization, an industry, or a nation. PKI is also an integrated set of services and administrative tools for creating, deploying, and managing public-key-based applications. It includes the cryptographic methods, the use of digital certificates and certification authorities (CAs), and the system for managing the process.

relative distinguished name (RDN) -- the part of the name of an object that is an attribute of the object itself. The attribute that provides the RDN for an object is referred to as the naming attribute. See also distinguished name.

replication -- in database management, the function that keeps distributed databases synchronized by routinely copying the entire database or subsets of the database to other servers in the network. There are several methods of replication, including primary site replication, shared or transferred ownership replication, symmetric replication, (also known as update-anywhere or peer-to-peer replication), and failover replication. See the Tech Encyclopedia for complete definitions of the different methods of replication. Active Directory provides multi-master replication, which is a form of symmetric replication (see multi-master replication).

schema -- the definition of an entire database; the universe of objects that can be stored in the directory is defined in the schema. For each object class, the schema defines what attributes an instance of the class must have, what additional attributes it may have, and what object class can be a parent of the current object base. See also object, attribute.

schema master -- the domain controller assigned to control all updates to the schema within a forest. At any time, there can be only one schema master in the forest. See also domain controller, forest, schema.

SID -- security identifier. See also access control entry.

single-master operations -- Active Directory operations that are single-master, that is, not permitted to occur at different places in the network at the same time. Examples of these operations include:

Relative identifier (RID) allocation

Schema modification

Primary domain controller (PDC) election

Certain infrastructure changes

site -- a location in a network holding Active Directory servers. A site is defined as one or more well connected TCP/IP subnets. Well-connected means that network connectivity is highly reliable and fast (LAN speeds, 10 MB bits-per-second or greater). Sites play a major role in the Active Directory replication service, which differentiates between replication using a local network connection (intra-site replication) and replication over a slower wide area network (WAN) link (inter-site replication). Administrators use the Active Directory Sites and Services Manager snap-in to administer replication topology for both intra- and inter-site replication.

store -- the physical storage for each Active Directory replica. When an object is stored in Active Directory, the system will select a copy of the store and write the object there. The replication system will replicate the object on all other replicas. The store is implemented using the Extensible Storage Engine (ESE). See also Extensible Storage Engine.

transitive trust -- the trust relationship that inherently exists between Windows 2000 domains in a domain tree or forest, or between trees in a forest, or that can exist between forests. When a domain joins an existing forest or domain tree, a transitive trust is automatically established. Transitive trusts are always two-way relationships. This series of trusts, between parent and child domains in a domain tree and between root domains of domain trees in a forest, allows all domains in a forest to trust each other for the purposes of authentication. For example, if domain A trusts domain B and domain B trusts domain C, then domain A trusts domain C. See also tree, forest.

tree -- a set of Windows NT domains connected together through transitive, bi-directional trust, sharing a common schema, configuration, and global catalog. The domains must form a contiguous hierarchical namespace such that if a.com is the root of the tree, b.a.com is a child of a.com, c.b.a.com is a child of b.a.com, and so on. See also schema, forest.

universal group -- the simplest form of group. Universal groups can appear in ACLs anywhere in the forest, and can contain other universal groups, global groups, and users from anywhere in the forest. Small installations can use universal groups exclusively and not concern themselves with global and local groups.

well-connected -- sufficient connectivity to make your network and Active Directory useful to clients on your network. The precise meaning of the term is determined by your particular needs.

X.500 -- a set of standards defining a distributed directory service, developed by the International Standards Organization (ISO).

Name	Location	Telephone	Email Address
Stu Doescher	NMD - Sioux Falls, SD	605-594-2526 703-648-7128	doescher@usgs.gov
Brian Rood	BRD - Onalaska, WI	608-783-7550 x35 608-781-6303	brian_rood@usgs.gov
Scott Brondel	NMD - Rolla, MO	573-308-3761	sbrondel@usgs.gov
Ed Brown	GD - Vancouver, WA	360-993-8910	ecbrown@usgs.gov
Larry McIrvin	NMD - Reston, VA	703-648-4664	lmcirvin@usgs.gov
John Schwegmann	NMD - Menlo Park, CA	650-329-5612	jschwegmann@usgs.gov
Mike McTootle	GD - Reston, VA	703-648-4939	mmctootl@usgs.gov
Roy McCullough	APS - Reston, VA	703-648-7061	rmccullough@usgs.gov
Sam Martinez	WRD - Denver, CO	303-236-1834	scmartin@usgs.gov
Mike Kandrac	APS - Reston, VA	703-648-4176	mkandrac@usgs.gov
Linda Peng	NMD - Reston, VA	703-648-7025	lpeng@usgs.gov
Janet MacNab	DOI -Washington, D.C.	202-208-5274	Janet_MacNab@os.doi.gov

Brendan Moon	Compaq - Waldorf, MD	301-893-8310	Brendan.Moon@compaq.com
Robert DeLuca	Microsoft - Washington, D.C.	202-257-8426	rdeluca@microsoft.com
Scott Thatcher	Microsoft - Washington, D.C.	202-274-7531	sthatch@microsoft.com
Steve Foley	Microsoft - Washington, D.C.	202-274-1435	stephenf@microsoft.com
Bob MacFarlane	Compaq - Greenbelt, MD	301-918-5570	Robert.MacFarlane@compaq.com

Date	Task
April 2, 2001	Finalize Production AD design, identify any special site requirements for deployment, and finalize equipment requirement list. Identify a point of contact for each site that will be used. Make sure that local site system admin is fully aware of what’s happening.
April 30, 2001	Complete Lighthouse Committee report for IC
May 18, 2001	Present findings to the IC and request funding to proceed with deployment
May 25, 2001	Production system managers have been designated. Training classes have been scheduled for production system managers.
May 25, 2001	Submit Procurement forms for acquisition of Production system components and necessary installation hardware.
July 9, 2001	*Expected arrival of production system equipment
July 23, 2001	Meeting of Active Directory deployment team in Reston to configure Production systems. Basic operational guidelines documentation is completed.
July 30, 2001	All equipment is up and functional. Active network load testing is completed. DNS and DHCP services are tested and confirmed not to conflict with existing USGS services at each site.
September 1, 2001	XXXX NT4.0 domains have been migrated to new service.
October 1, 2001	Primary Active Directory services are in-place for USGS and available for all USGS staff to use.

· Netware

· Windows 9x/NT/2000

· Macintosh

· UNIX

· Single Signon

Highlights of the team recommendations:
